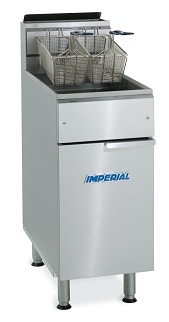

Imperial Gas Fryer



Stainless Steel Front, Sides, Door, Flue and Frying Vessel
Stainless Steel Frying Vessel is 16guage w/14guage Burner Tubes
Snap Action Thermostat 200-400deg
Included 2-Large Nickel-Plated Wire Mesh Fry Baskets
w/ Vinyl Coated Heat Resistant Handles

        Model

         Measurements
        W       D        H

  Oil Capacity           BTU's   Burners

        IFS-40              15-1/2 x 30 x 45-1/2                40#     105,000              3

        IFS-50     15-1/2 x 30 x 45-1/2        50#     140,000              4

        IFS-75     19-1/2 x 34 x 45-1/2        75#     175,000       5


               1-Year Parts and Labor Warranty



               5-Year Pro-Rated Tank Warranty


http://imperialrange.com/specsheets/40fryer.pdf



 Imperial Open Pot Fryer



Stainless Steel Front, Sides, Door, Flue and Frying Vessel
Open Pot Frying Vessel is 16guage Stainless Steel
Fenwal Thermostat 200-400deg
Fenwal Saftey Thermostat
Included 2-Large Nickel-Plated Wire Mesh Fry Baskets
w/ Vinyl Coated Heat Resistant Handles

          Model      Measurements
       W    D       H		   Oil Capacity          BTU's

        IFS-40-OP                     18 x 36 x 45-1/2                     40#     122,000

        IFS-50-OP       18 x 36 x 45-1/2         50#     130,000

        IFS-75-OP       18 x 36 x 45-1/2         75#     175,000

                                             1-Year Parts and Labor Warranty

                                             5-Year Pro-Rated Tank Warranty


http://imperialrange.com/specsheets/IFS-40OP.pdf



APW Counter Model Gas Fryer

Produces up to 60# of Raw-to-Done Potatoes per Hour
Stainless Steel Construction
Front Located Thermostat 200 to 400deg with On/Off Control

       Model       Overall Measurements
      W       D           H		 Oil Capacity    BTU's          Basket Size
     W          D          H

        GF15            12 x 26-1/4 x 22-1/2               15# 40,000   3-1/2 x 11-3/8 x 5-3/4

                                                         1-Year Parts and labor Warranty

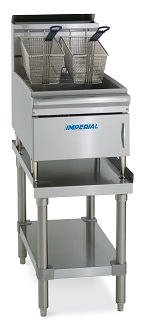

 Imperial Counter Model Gas Tube Fryer



Stainless Steel Front, Sides, Door, Flue and Frying Vessel
Stainless Steel Frying Vessel is 16guage w/14guage Burner Tubes
Snap Action Thermostat 200-400deg
Included 2-Large Nickel-Plated Wire Mesh Fry Baskets
w/ Vinyl Coated Heat Resistant Handles
Shown w/OPTIONAL Equipment Stand

          Model            Measurements
       W            D          H		  Oil Capacity        BTU's   Burners

        IFST-25           15-1/2 x 29-1/4 x 24-1/2               25#     65,000            3

                                               1-Year Parts and Labor Warranty

                                               5-Year Pro-Rated Tank Warranty


http://www.imperialrange.com/specsheets/25fryer.pdf



APW Counter Model Electric Fryer

Produces up to 60# of Raw-to-Done Potatoes per Hour
Stainless Steel Construction
Front Panel Permits Easy Service
Lift-out 1-Piece Tank with Carrying Handles
Large Foaming Area Above Frying Compound Level
Insulating Air Pocket Surrounds Tank for Improved Temperature Control
Cold Zone Under Heating Elements Reduces Circulation of
Particles in Frying Compound
Front Located Thermostat 200 to 400deg with On/Off Control

     Model      Measurements
    W      D        H		 Oil Capacity            Electric            2-Baskets
     W          D          H

      EF-30       24 x 12-1/2 x 17           30#   208v 12kw 57.7a      7-1/4 x 11-2/5 x 6-1/4

      EF-30       24 x 12-1/2 x 17         30#   240v 12kw 50.0a   7-1/4 x 11-2/5 x 6-1/4

 Voltage Specific Units Have a HIGHER Productrion Rate than Dual Voltage Units


                              http://www.apwwyott.com/specs/(EF-30)%20Electric%20Fryer.pdf


      EF-15N      12 x 24 x 16-3/8        15#      208/240v
     5.7/4.28kw
     23.8/20.6a		   3-7/16 x 11-3/8 x 6-1/4


          http://www.apwwyott.com/images/Products/SpecSheets/Cookline/(EF-30)ElectricFryer.pdf


                                                    1-Year Parts and Labor Warranty

Don't Forget Your Gas Hose for Easy Installation

Stationayy Hose is a Stainless Steel Flex Hose with the Antimicroabial Coating

3/4" x 48"
3/4" x 60"
3/4" x 72"

Other Sizes are Available

Make Your Gas Equipment Mobile for Easy Cleaning and Installation



Casters and Mobile Gas Hose
Mobile Hose is a Stainless Steel Flex Hose Covered with a Stainless Steel Braided Hose and Antimicroabial Coating.
Complete w/Shut-Off Valve, 2-Streel "L", Quick Disconnect and Restraining Device.

3/4" x 48"
3/4" x 72"

Other Sizes are Available
