All IMPERIAL Restaurant Ranges Stainless Steel Front, Sides, Back guard and Plate Shelf
Burners: 32,000btu's Lift-Off Style Burner Heads for Easy Cleaning and High Performance
Grates: Heavy-Duty Cast Iron Remove Easily and Safely Cast-In Bowl Directs Heat to the Cooking Surface Design Allows Pots to Slide Easily from Section to Section
Oven: Chef's Depth 26" Standard Oven Allows 18" x 26" Sheet Pans to be Rotated Left to Right and Front to Back
Stamped Inner Door Provides Better Heat Retention
Interior is Porcelanized for Easy Cleaning
"U" Shaped Burner and Unique Burner Baffle Distributes Heat Flow Evenly Throughout the 35,000btu Oven
Landing Ledge: 5" Wide Stainless Steel Landing Ledge Provides a Functional Working Area
Griddle: Highly Polished 3/4" Thick Plate w/3" Wide Stainless Steel Grease Trough 1-20,000btu Burner for Every 12" of Griddle Surface
Manually Controlled Griddle is Located on the Left Side of the Range
Raised Griddle/Broiler: Available in 12", 24" or 36" Wide.
3/4" Plate w/Manual Control Only
1-20,000btu Burner w/Heat Deflector Every 12"
Griddle/Broiler is Located on Right Side of the Range
Large Griddle Grease Can
Chrome Plated Broiler Rack is Removable
Large Full Width Broiler Drip Tray
Hot Tops: Heavy-Duty Casting w/Heat Retaining Projections Underneath to Absorb and Diffuse Heat
1-20,000btu "U" Shaped Burner Every 12" w/Manual Controls
| OPTIONS | | | | Burner heads | Griddle | Oven | Casters | | | | | | | Saute | Thermostatically Controlled | Extra Rack | | | | | | | | Wok | Grooved | Convection Oven | | | | | | | | All Purpose | | | | | | | | | | Flat Griddle on Right Side (No Extra Charge) |
|
|
24" Wide x 31-1/4" Deep x 36" High Restaurant Range
| Model | Description | BTU's | | | | | IR-4 | 4-Burners
Chef's Depth Standard Oven | 139,000 | IR-4-XB
| 4-Burners
Cabinet Base
| 112,000 | | | | | | | | | IR-2-G12
| 2-Burners w/12" Flat Griddle
Chef's Depth Standard Oven
| 103,000 | IR-2-G12-XB
| 2-Burners w/12" Flat Griddle
Cabinet Base
| 76,000 | | | | | | | | | IR-G24
| 24" Flat Griddle
Chef's Depth Standard Oven
| 67,000 | IR-G24-XB
| 24" Flat Griddle
Cabinet Base
| 40,000 | | | | | | | | | IR-4-SU
| 4-Step-Up Burners
Chef's Depth Standard Oven
| 139,000 | IR-4-SU-XB
| 4-Step-Up Burners
Cabinet Case
| 112,000 |
|
|

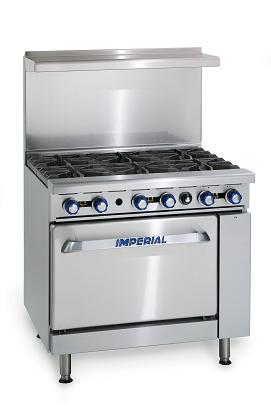

36" Wide x 31-1/4" Deep x 36' High Restaurant Range | Model | Description | BTU's | | | | | IR-6 | 6-Burners
Full Size Standard Oven | 203,000 | IR-6-C
| 6-Burners
Convection Oven
| 198,000 | IR-6-XB
| 6-Burners
Cabinet Base
| 168,000 | | | | | | | | | IR-4-G12
| 4-Burners w/12" Flat Griddle
Full Size Standard Oven
| 167,000 | IR-4-G12C
| 4-Burners w/12" Flat Griddle
Convection Oven
| 162,000 | | IR-4-G12-XB | 4-Burners w/12" Flat Griddle
Cabinet Base
| 132,000 | | | | | | | | | IR-2-G24
| 2-Burners w/24" Flat Griddle
Full Size Standard Oven
| 131,000 | IR-2-G24-C
| 2-Burners w/24" Flat Griddle
Convection Oven
| 126,000 | IR-2-G24-XB
| 2-Burners w/24" Flat Griddle
Cabinet Base | 96,000 | | | | | IR-G36
| 36" Flat Griddle
Full Size Standard Oven
| 95,000 | IR-G36-C
| 36" Flat Griddle
Convection Oven
| 90,000 | IR-G36-XB
| 36" Flat Griddle
Cabinet Base
| 60,000 | | | | | | | | | IR-4-RG12
| 4-Burners w/12" Raised Griddle/Broiler
Full Size Standard Oven
| 167,000 | IR-4-RG12-C
| 4-Burners w/12" Raised Griddle/Broiler
Convection Oven
| 162,000 | IR-4-RG12-XB
| 4-Burners w/12" Raised Griddle/Broiler
Cabinet Base
| 132,000 | | | | | | | | | Extra Wide
IR-4-S18
| 4-Burners w/18" Wide Grates
Full Size Standard Oven
| 147,000 | Extra Wide
IR-4-S18-C
| 4-Burners w/18" Wide Grates
Convection Oven
| 142,000 | Extra Wide
IR-4-S18-XB
| 4-Buners w/18" Wide Grates
Cabinet Base
| 112,000 | | | | | | | | | IR-6-SU
| 6-Step-Up Burners
Full Size Standard Oven
| 203,000 | IR-6-SU-C
| 6-Step-up Burners
Convection Oven
| 198,000 | IR-6-SU-XB
| 6-Step-Up Burners
Cabinet Base | 168,000 | | | | | Imperial Range Website
| | | | |
|
|
48" Wide x 31-1/4" Deep x 36" High Restaurant Range
| Model | Description | BTU's | | | | | IR-8 | 8-Burners
2-Chef's Depth Standard Ovens
| 278,000 | IR-8-C-XB | 8-Burners
Convection Oven & Cabinet Base
| 254,000 | IR-8-XB | 8-Burners
Full Size Standard Oven & Cabinet Base
| 259,000 | | | | | | | | | IR-6-G12 | 6-Burners w/12" Flat Griddle
2-Chef's Depth Standard Ovens
| 242,000 | IR-6-G12C-XB | 6-Burners w/12" Glat Griddle
Convection Oven Cabinet Base
| 218,000 | IR-6-G12-XB | 6-Burners w/12" Flat Griddle
Full Size Standard Oven Cabinet Base
| 223,000 | | | | | | | | | IR-4-G24 | 4-Burners w/24" Flat Griddle
2-Chef's Depth Standard Ovens
| 206,000 | IR-4-G24-C | 4-Burners w/24" Flat Griddle
Convection Oven & Cabinet Base
| 182,000 | IR-4-G24-XB | 4-Burners w/24" Flat Griddle
Full Size Standard Oven & Cabinet Base
| 187,000 | | | | | | | | | IR-2-G36 | 2-Burners w/36" Flat Griddle
2-Chef's Depth Standard Ovens
| 168,000 | IR-2-G36-C-XB | 2-Burners w/36" Flat Griddle
Convection Oven & Cabinet Base
| 144,000 | IR-2-G36-XB | 2-Burner w/36" Flat Griddle
Full Size Standard Oven & Cabinet Base
| 149,000 | | | | | | | | | IR-G48 | 48" Flat Griddle
2-Chef's Depth Standard Ovens
| 134,000 | IR-G48-C-XB | 48" Flat Griddle
ConvectionOoven & Cabinet Base
| 110,000 | IR-G48-XB | 36" Flat Griddle
Full Size Standard Oven & Cabinet Base
| 135,000 | | | | | | | | | IR-4-RG24 | 4-Burners w/24" Raised Griddle/Broiler
2-Chef's Depth Standard Ovens
| 206,000 | IR-4-RG24-C-XB | 4-Burners w/24" Raised Griddle/Broiler
Convection Oven & Cabinet Base
| 182,000 | IR-4-RG24-XB | 4-Burners w/24" Raised Griddle/Broiler
Full Size Standard Oven & Cabinet Base
| 187,000 | | | | | | | | | IR-8-SU | 8-Step-Up Burners
2-Chef's Depth Standard Ovens
| 278,000 | IR-8-SU-C-XB | 6-Step-Up Burners
Convection Oven & Cabinet Base
| 254,000 | IR-8-SU-XB | 6-Step-Up Burners
Full Size Standard Oven & Cabinet Base
| 259,000 |
|
|
60" Wide x 31-1/4" Deep x 36" High Restaurant Range
Model | Description | BTU's | | | | |
|
|

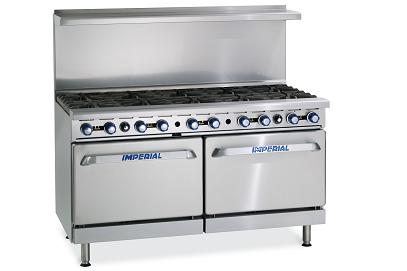

| IR-10
| 10-Burners w/2-Full Size Standard Ovens
| 350,000 | IR10-CC
| 10-Burners w/2-Convection Ovens
| 340,000 | IR-10-XB | 10-Burners w/Cabinet Base
| 315,000 | | | | | | | | | IR-6-G24
| 6-Burners w/24" Flat Griddle
2-Full Size Standard Ovens
| 278,000 | IR-6-G24-CC
| 6-Burners w/24" Flat Griddle
2-Convection Ovens
| 268,000 | IR-6-G24-XB
| 6-Burners w/24" Flat Griddle
Cabinet Base
| 243,000 | | | | |
|
|
| IR-4-G36
| 4-Burners w/36" Flat Griddle
2-Full Size Standard Ovens
| 242,000 | IR-4-G36-CC
| 4-Burners w/36" Flat Griddle
2-Convection Ovens
| 232,000 | IR-4-G36-XB
| 4-Burners w/24" Flat Griddle
Cabinet Base
| 207,000 | | | | |
|
|
| IR-2-G48
| 2-Burners w/48" Flat Griddle
2-Full Size Standard Ovens
| 206,000 | IR-2-G48-CC
| 2-Burners w/48" Flat Griddle
2-Convection Ovens
| 196,000 | IR-2-G48-XB
| 2-Burner w/48" Flat Griddle
Cabinet Base
| 171,000 | | | | |
|
|
| IR-G60
| 60" Flat Griddle
Full Size Standard Ovens
| 170,000 | IR-G60-CC
| 60" Flat Griddle
2-Convection Ovens
| 160,000 | IR-G60-XB
| 60" Flat Griddle
Cabinet Base

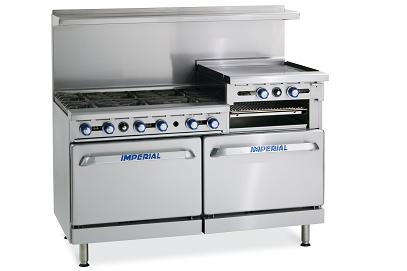

| 135,000 | IR-6-RG24
| 6-Burners w/24" Raised Griddle/Broiler
2-Full Size Standard Ovens
| 278,000 | IR-6-RG24-CC | 6-Burners w/24" Raised Griddle/Broiler
2-Convection Ovens
| 268,000 | IR-6-RG24-XB
| 6-Burners w/24" Raised Griddle/Broiler
Cabinet Base
| 243,000 | | | | | | | | IR-10-SU
| 10-Step-Up Burners
2-Full Size Standard Ovens
| 350,000 | IR-10-SU-CC
| 10-Step-Up Burners
2-Convection Ovens
| 340,000 | IR-10-SU-XB | 10-Step-Up Burners
Cabinet Base
| 315,000 |
|
|
72" Wide x 31-1/4" Deep x 36" High Restaurant Range
| Model | Description | BTU's | | | | | IR-12 | 12-Burners
2-Full Size Standard Ovens
| 406,000 | IR12-CC
| 12-Burners
2-Convection Ovens
| 396,000 | IR-12-XB
| 12-Burners
Cabinet Base
| 371,000 | | | | | | | | | IR-8-G24
| 8-Burners w/24" Flat Griddle
2-Full Size Standard Ovens
| 334,000 | IR-8-G24-CC
| 8-Burners w/24" Flat Griddle
2-Convection Ovens
| 324,000 | IR-8-G24-XB
| 8-Burners w/24" Flat Griddle
Cabinet Base
| 299,000 | | | | | | | | | IR-6-G36
| 6-Burners w/36" flat Griddle
2-full Size Standard Ovens | 298,000 | IR-6-G36-CC
| 6-Burners w/36" Flat Griddle
2-Convection Ovens
| 288,000 | IR-6-G36-XB
| 6-Burners w/24" Flat Griddle
Cabinet Base
| 263,000 | | | | | | | | | IR-4-G48
| 4-Burners w/48" Flat Griddle
2-Full Size Standard Ovens
| 262,000 | IR-4-G48-CC
| 4-Burners w/48" Flat Griddle
2-Convection Ovens
| 252,000 | IR-4-G48-XB
| 4-Burner w/48" Flat Griddle
Cabinet Base
| 227,000 | | | | | | | | | IR-2-G60
| 2-Burners w/60" Flat Griddle
2-Full Size Standard Ovens
| 226,000 | IR-2-G60-CC
| 2-Burners w/60" Flat Griddle
2-Convection Ovens
| 216,000 | IR-2-G60-XB
| 2-Burners w/60" Flat Griddle
Cabinet Base
| 191,000 | IR-G72
| 72" Flat Griddle
2-Full Size Standard Ovens
| 190,000 | IR-G72-CC
| 72" Glat Griddle
2-Convection Ovens
| 180,000 | IR-G72-XB
| 72" Flat Griddle
Cabinet Base
| 155,000 | | | | | | | | | IR-12-SU
| 12-Step-Up Burners
2-Full Size Standard Ovens
| 406,000 | IR-12-SU-CC
| 12-Step-Up Burners
2-Convection Ovens
| 396,000 | IR-12-SU-XB
| 12-Step-Up Burners
Cabinet Base
| 371,000 |
|
|
Don't Forget Your Gas Hose for Easy Installation
Stationary Hose is a Stainless Steel Flex Hose with the Antimicrobial Coating
3/4" x 48"
3/4" x 60"
3/4" x 72" Other Sizes are Available |
|
Make Your Gas Equipment Mobile for Easy Cleaning and Installation Casters and Mobile Gas Hose
Mobile Hose is a Stainless Steel Flex Hose Covered with a Stainless Steel Braided Hose and Antimicroabial Coating.
Complete w/Shut-Off Valve, 2-Streel "L", Quick Disconnect and Restraining Device. 3/4" x 48"
3/4" x 72" Other Sizes are Available |
|
|
